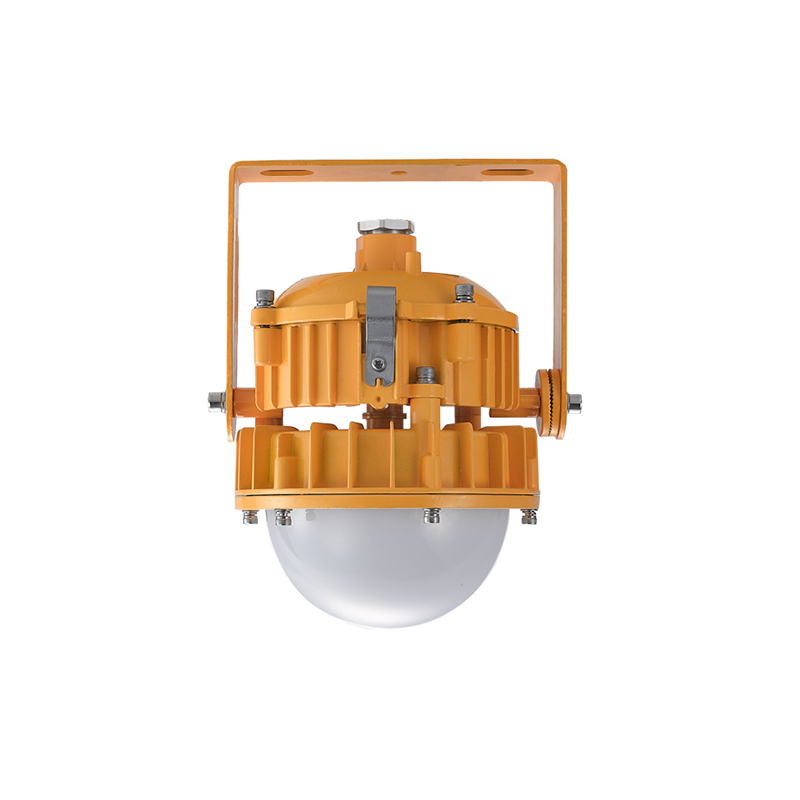

BPC8767 EXPLOSION-PROTECTED LED PENDANT LIGHT FITTING

Fixed calipers by Wilwood offer unmatched stopping power. The pistons in fixed calipers are located on both sides of the disc, allowing for evenly distributed clamping force. They apply more squeezing...


  • Operating temperature: -20 ºC to +40 ºC
  • Rated voltage: AC220V-240V 50Hz/60Hz
  • Wattage: 30W 50W
  • Type: LED3030
  • Luminous efficiency: 100 lm / W
  • Degree of protection: IP66
  • Corrosion-proof class: WF2
down load to pdf

Product Details

Product Tags

APPLICATIONS
Suitable for illumination of oil refining and chemical facility platforms, corridors and other hazardous locations.

TECHNICAL DATA
Body material：Aluminum alloy with epoxy powder coating
Diffuser：Polycarbonate
Rated voltage：AC110V-240V  50Hz/60 Hz
Wattage：30W 50W
Luminous efficiency：140 lm / W
Degree of protection：IP65
Cable entry：G3/4
Corrosion-proof class：WF2

TECHNICAL DATA
1、Explosion group: IIC
2、Degree of protection: IP 65
3、Optical distributions: round type
4、Anti-glare transparent cover
5、Suitable for pole mounting and ceiling mounting

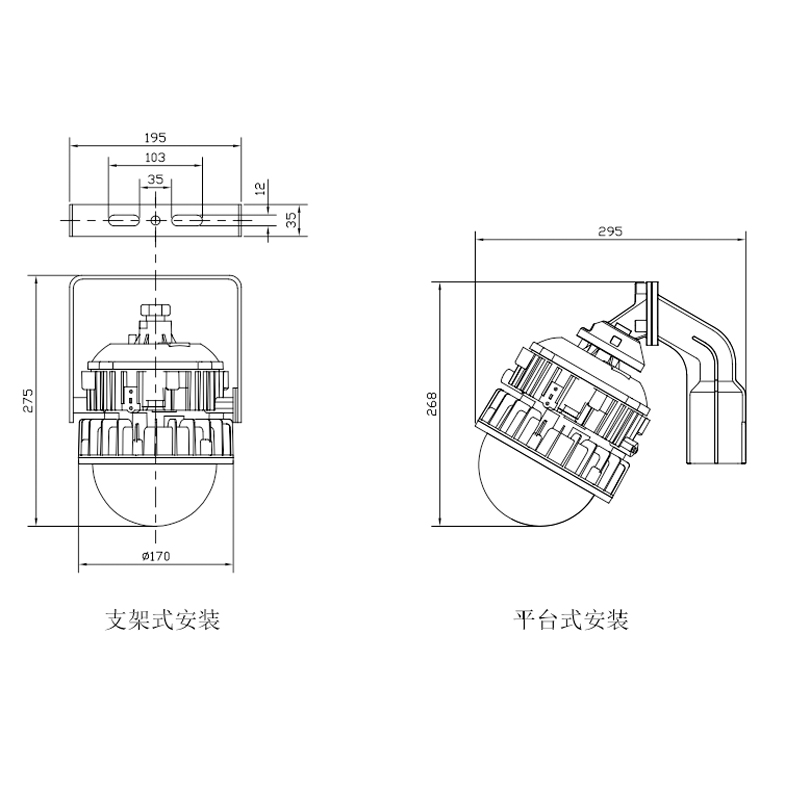

DIMENSION DRAWINGS

BPC8767 EXPLOSION-PROTECTED LED PENDANT LIGHT FITTING


DIMENSION DRAWINGS

BPC8767 EXPLOSION-PROTECTED LED PENDANT LIGHT FITTING
