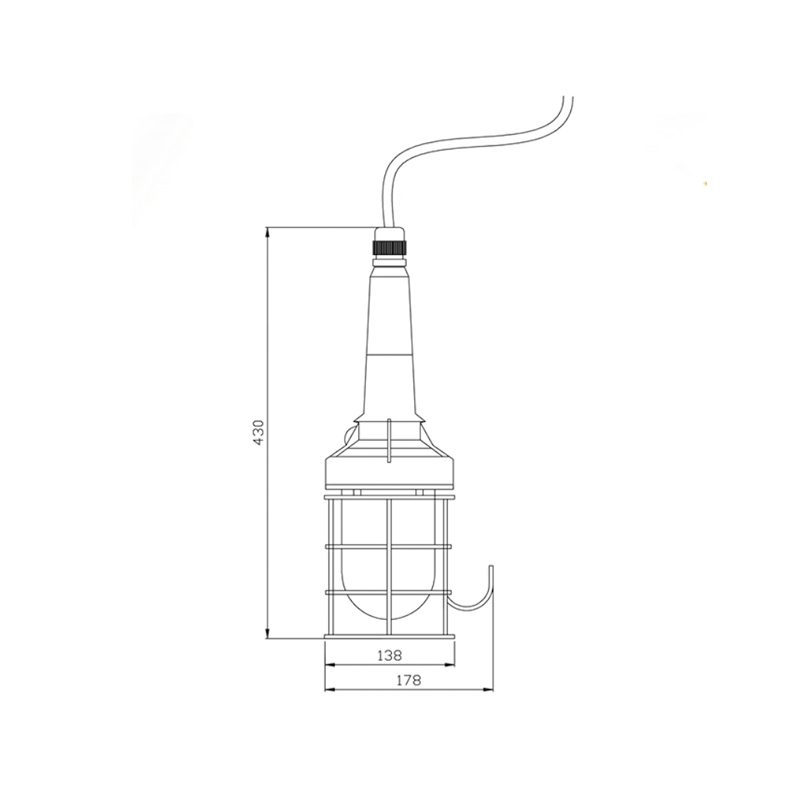

SX-60 Explosion Proof Hand Lamps

Slots provide gas and water dissipationSlots help to increase pad bite and improve air circulationDrilled Holes and Slots create an escape route for debris, dust, gases, and waterSlots clean and de-gl...

Operating temperature: -20 ºC to +40 ºC
Rated voltage: AC220V-240V 50Hz/60Hz
Wattage: 5W 8W 10W 15W
Type: LED3030
Luminous efficiency: 100 lm / W
Degree of protection: IP66
Corrosion-proof class: WF2

CONTACT NOW down load to pdf

Product Details

Product Tags

APPLICATIONS
Class I. Zone 1 and Zone 2
Class I, Division 2, Groups A, B. C, D
Suitable for illumination of hazardous locations in various industries

FEATURES
Incandescent lamps: Max. 60W; LED: Max. 25W
Cable on request
Handle in plastic, with control pushbutton
Powder coated wire guard, white
Toughened glass cover resistant to temperature changes

TECHNICAL DATA

No	Parameter		Value
1	Rated voltage		100V-220V 50/60Hz
2	Light source	Wattage	LED 5w 8w 10w 15w
		Type	LED
		Luminous efficiency	100 lm / W
		Life	100000h
3	Degree of protection		IP66
4	Ambient temperature		20 ºC ~ +55 ºC
